Diamond Core Drill

Diamond core drill machine, also called concrete coring machine, water wet core drilling machine, rock core drilling machine, asphalt coring equipment, and wall coring machine is a kind of new drilling rig which can be used for drilling holes in reinforced concrete, masonry, rock, ceramic, and refractory. Not like water well drilling rigs, geotechnical exploration drilling rigs, and DTH drilling rigs, the diamond core drilling machine manufactured by YG Machinery is a kind of small-sized drilling rig that is characteristic of dust-free operation, high efficiency, smooth hole, and precise size. You can use the diamond drilling machine for the construction, quality inspection, and installation of equipment, water, electricity, gas, civil construction quality inspection, airport runway, highway, railway, bridge, tunnel, etc.【WhatsApp/WeChat/Skype/Phone】+86 136 1385 6800

Diamond Core Drill Machine

Diamond Core Cutting Machine
YG Diamond Coring Machine
Diamond Core Drill Bits Details
Good Quality Diamond Coring Machine
Diamond Core Drilling Rigs for Sale
Trailer Type Diamond Coring Machine
Diamond Core Cutting Machine YG Diamond Coring Machine Diamond Core Drill Bits Details Good Quality Diamond Coring Machine Diamond Core Drilling Rigs for Sale Trailer Type Diamond Coring Machine

Request A Quote

YG-200Q Wet Core Drilling Machine

YG-200Q wet core drilling machine here in Yugong is a kind of road core drilling machine. You can see that this core drilling machine is equipped with Japan’s famous motor brand Honda 13 which provides great power for drilling. And this model of wet core drilling machine is gasoline-powered. Applicable to the highway, airport runway, and other fields without power conditions drilling.

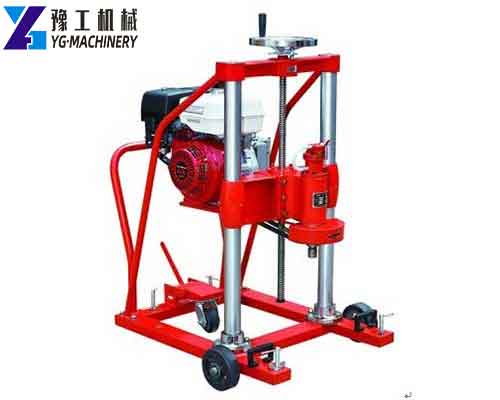

Diamond Core Cutting Machine
Diamond Core Cutting Machine


Technical Parameter

Model: YG-200Q
Max. opening hole diameter: 200mm
Drilling depth: 700mm
Rotating speed: 1100r/min
Gasoline motor power: 9.5kw
Weight: 130kg

Request A Quote

YG-200L Diamond Core Drilling Machine

YG-200L diamond core drilling machine is suitable for the drilling of highly reinforced concrete. It is equipped with an overload clutch which can prolong the service time of the diamond core drilling machine. What’s more, a ruler is equipped in the column functioning as the precise drilling depth.

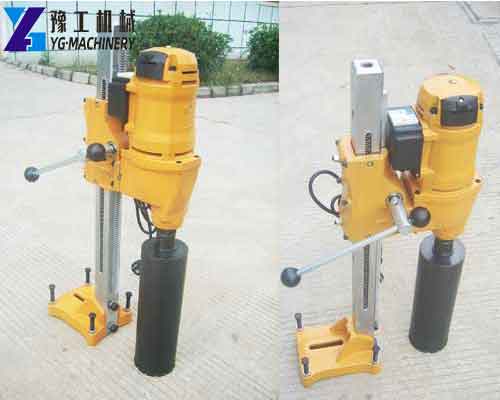

Good Quality Diamond Coring Machine
Good Quality Diamond Coring Machine


Technical Parameter

Model: YG-200L
Drilling Hole Diameter: φ50~φ200 mm
Rotating Speed: 750r/min
Power: 3.5kw
Voltage: 220v
Weight: 21kg

Request A Quote

YG-200D Diamond Drilling Machine

YG-200D diamond drilling machine is also designed to drill hard concrete. The drilling speed of this diamond coring machine can be regulated by an electric system which makes it easier to operate. Like the YG-200L diamond core drilling machine, the YG-200D diamond drilling machine is also equipped with an overload protection device and ruler in the column.

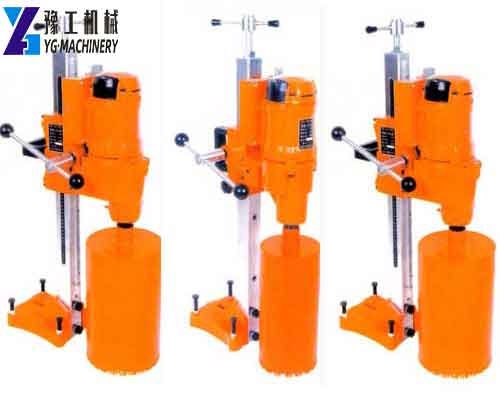

YG Diamond Coring Machine
YG Diamond Coring Machine


Technical Parameter

Model: YG-200D
Drilling Hole Diameter: φ50~φ200 mm
Rotating Speed: 0-750r/min
Power: 3.5kw
Voltage: 220v
Weight: 22kg

Request A Quote

YG-200G Diamond Coring Machine

YG-200G diamond coring machine is a high-speed type of diamond core drilling machine. With standard devices like an electric drilling speed regulation device, overload protection device, and ruler in the column, you can use this diamond core drilling machine in highway inspection drilling.

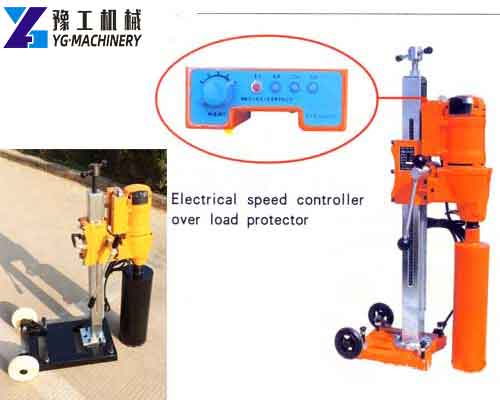

Diamond Core Drilling Equipment
Diamond Core Drilling Equipment


Technical Parameter

Model: YG-200G
Drilling Hole Diameter: φ100~φ200 mm
Rotating Speed: 0-1200r/min
Power: 3.5kw
Voltage: 220v
Weight: 30kg

Request A Quote

YG-200G Trailer Type Diamond Coring Machine

YG-200G diamond coring machine is a trailer type of diamond core drilling machine which makes it easy to move around. This model can be applied to the core drilling of roads and highways. The drilling speed of this small drilling rig is adjustable by an electric speed control device. You can set the drilling depth before drilling with the ruler in the column. If the material is too hard for the diamond coring machine, it will stop automatically without causing any damage to the machine because it is equipped with an overload protection system.

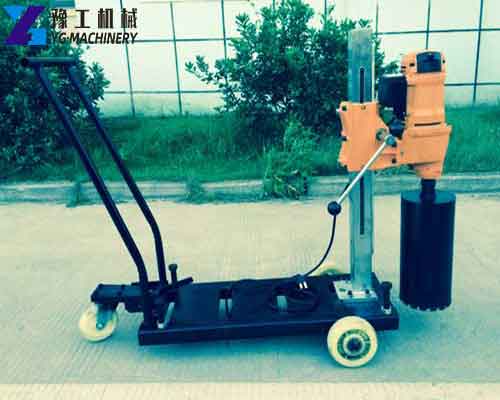

Trailer Type Diamond Coring Machine
Trailer Type Diamond Coring Machine


Technical Parameter

Model: YG-200G Trailer Type
Drilling Hole Diameter: φ100~φ200 mm
Rotating Speed: 0-1100r/min
Power: 3.5kw 50hz-60hz
Voltage: 220v/240V
Weight: 70kg

Request A Quote

YG-300S Diamond Core Cutting Machine

YG-300S diamond core cutting machine is a kind of deep core drilling machine. The opening hole diameter is up to 300mm, and if the diameter is less than 150mm, you can get the core sample underground 3-meter depth. Check the parameter below, and if you have any other questions like pricing information, please contact us freely.

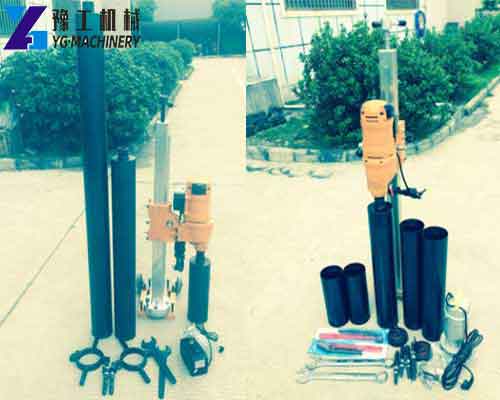

Wet Core Drilling Machine for Sale
Wet Core Drilling Machine for Sale


Technical Parameter

Model: YG-300S
Opening Hole Diameter: φ100-φ300mm
Rotating Speed: 500r/min
Power: 4.3kw
Voltage: 220v
Weight: 40kg

Request A Quote

YG-200 Diamond Concrete Drilling Machine

YG-200 is a kind of intelligent inflexible diamond concrete drilling machine. You can control the drilling of the machine with a smart control gauge which is very easy and simple. For more detailed information, please email us.

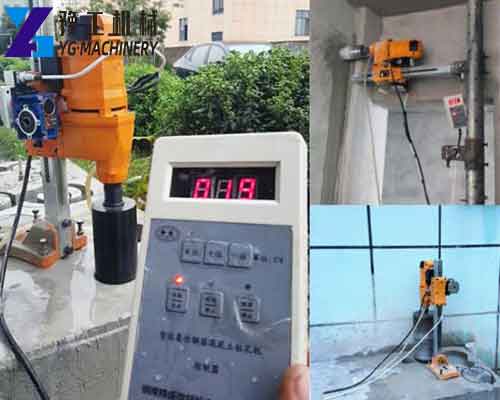

Diamond Drilling Machine for Sale
Diamond Drilling Machine for Sale

Technical Parameter

Model: YG-200
Opening Hole Diameter: φ30-φ200mm
Rotating Speed: 800r/min
Power: 3.5kw
Voltage: 220v
Weight: 23kg

Request A Quote

YG-300 Diamond Drilling Tools

Another smart inflexible diamond drilling tool is YG-300. you can drill deeper than 3 meters if the opening hole diameter is less than 150mm.

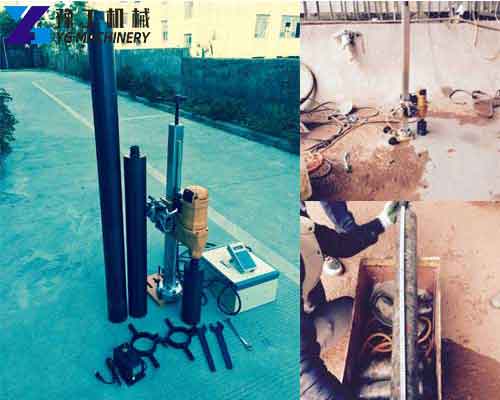

Diamond Core Drill Machine
Diamond Core Drill Machine


Technical Parameter

Model: YG-300
Opening Hole Diameter: φ100-φ300mm
Rotating Speed: 500r/min
Power: 4.3kw
Voltage: 220v
Weight: 40kg

Request A Quote

YG-400 Diamond Core Drilling Machine

Like the YG-200 diamond concrete drilling machine and YG-300 diamond drilling tool, the YG-400 diamond core drilling machine is also very flexible in drilling. The opening hole diameter can be up to 400mm, and if your drilling diameter is no more than 200mm, you can drill a hole of more than 3 meters.

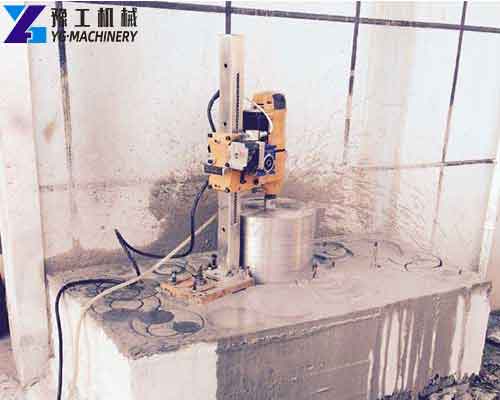

Diamond Core Cutting Tools
Diamond Core Cutting Tools


Technical Parameter

Model: YG-400
Opening Hole Diameter: φ100-φ400mm
Rotating Speed: 500r/min
Power: 4.3kw
Voltage: 220v
Weight: 40kg

Request A Quote

Diamond Core Drill Bits for Sale

Diamond core drilling bits are the key elements of a diamond core drilling machine. Here in Henan Yugong Machinery Co., Ltd, you can find diamond drilling bits with 20, 27, 32, 38, 42, 47, 51, 56, 63, 71, 76, 80, 83, 89, 96, 102, 108, 114, 120, 127, 132, 140, 146, 152, 160, 168, 180, 200, 220, 240, 245, 300, 350, and 400 outer diameters. The normal length of the diamond drilling bits is 360mm and 400mm. But if you have particular needs, we can customize them for you.

Diamond Core Drilling Bits for Sale
Diamond Core Drilling Bits for Sale

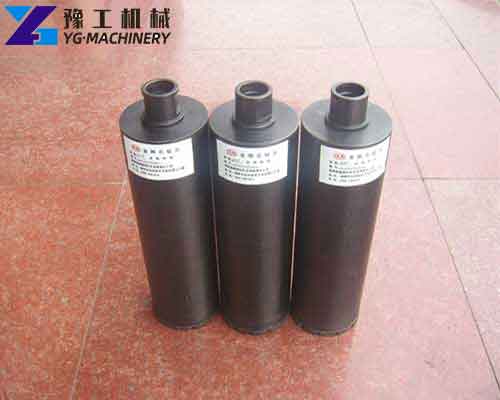

YG Core Drill Bits
YG Core Drill Bits

Want To Get The Price of YUGONG Diamond Core Drilling Bits?

The high-quality diamond core drilling bits can drill highly reinforced concrete. It has a high drilling efficiency of 30-50mm per minute. The service time of one diamond drilling bit is about 25 meters.

Another diamond core drill accessory is a detachable high-strength expansion bolt which is used for fixing diamond core drilling machines and wall cutting machines. Each set of bolts can be used over 200 times which is very cost-effective. The bolts are made up of high-quality alloy steel. The diameter of the bolt is 20mm, and the length is 160mm. Please email us freely if you need it.

Coring Machine Bits
Coring Machine Bits

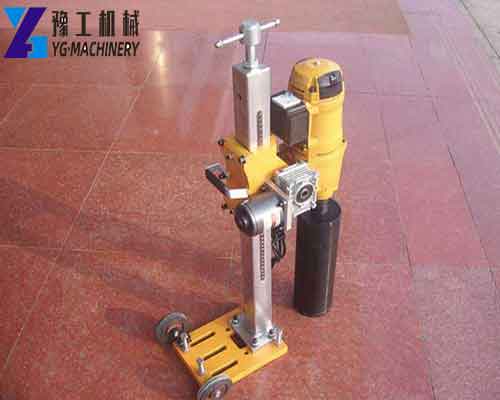

Diamond Core Drilling Rigs for Sale
Diamond Core Drilling Rigs for Sale

Interested in Our Diamond Coring Machine?

Diamond Core Drill Machine Manufacturers

If you want to buy a diamond core drilling machine, please choose reliable diamond core drilling machine manufacturers like Henan YG Machinery can present you with a series of quality certificates if you want. Diamond core cutting machine price differs in models and quality, so please choose your preferred model before you request a quote from us.

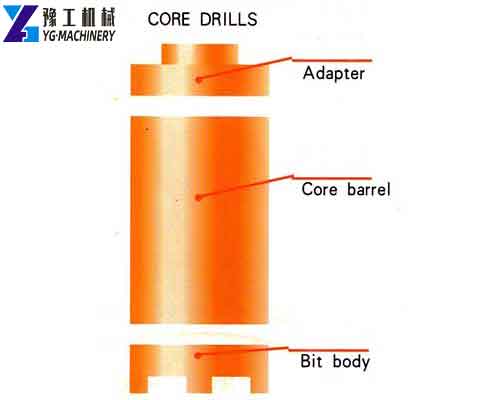

Diamond Core Drill Bits Details
