The gasoline rock drill is usually used to mine the stone. It can drill holes in rock formations and then put explosives into the holes to break up the rock. In this way, the excavation of stone can be completed. In addition, a rock drilling machine can also be converted into a destructor that can be used to break down hard layers such as concrete. Different from pneumatic rock drilling equipment, a gasoline rock drill is a kind of rock drilling equipment powered by oil combustion. When you have no idea which type of equipment will be suitable for you, please refer to the introduction of these types or consult us, then the professional sales manager in our company will recommend the right model according to your requirements.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800

Request A Quote

Gasoline Rock Drilling Machine
Gasoline Rock Drilling Machine

Rock Drilling Rig Technical Parameter:

Technical specifications
Weight of the main machine 27kg
Overall dimensions(L*W*H) 746*315*229mm
Type of engine Single cylinder, air-cooled two-strokes
Cylinder diameter*stroke of the piston Φ58*70mm
The rotation speed of the engine ≥2450rpm
Displacement of the engine piston 185cm³
Type of carburetor hand needle valve, floatless type
Ignition system controllable silicon, contactless system
Drilling speed (mean value of five holes) ≥250mm/min
Drilling hole diameter Φ28-42mm
Max drilling depth 6m
Fuel consumption ≤0.12L/m
Tank capacity ≥1.5liter
The mixture ratio of gasoline and lubrication oil (in volumes) 12:01
Drill rod and breaker shank Hex22*108mm
Rotating speed of drill rod ≥200rounds/min
Clearance of spark plug 0.5-0.7mm

Request A Quote

The Application of Gasoline Rock Drill Machine
The Application of Gasoline Rock Drill Machine

The Introduction of Gasoline Rock Drill Machine

The gasoline rock drill is a kind of handheld rock drilling equipment that is composed of a small gasoline engine, compressor, and rock drill. The machine is mainly used for drilling horizontal and upward holes that are less than  45 °. By changing a few parts, the machine can be changed into a crusher or compactor for all kinds of shoveling, crushing, digging, splitting, and tamping. The gasoline rock drilling machine has its power which can blow the blast hole with its self-produced compressed air. So this kind of rock drilling equipment is especially suitable for areas with high mountains, no power supply, no pressure equipment, and temporary work with high mobility.

The 8 Features of Gasoline Rock Drill for Sale in YG Machinery

  • A kind of portable rock drilling equipment can also be called a handheld rock drilling machine.
  • The machine is easy to operate and has the characteristics of fast chisel speed and high efficiency which can save time and effort.
  • The machine produced by our company can reach the first-class level of the same kind of equipment and can be interchanged with international similar parts completely.
  • The deepest drilling depth can reach 6m which can drill the holes vertically downwards and horizontally upwards with angles less than 45 °.
  • Lightweight, easy to carry, a wide range of applications.
  • The machine adopts export packing, all indexes reach the export standard.
  • The machine can operate with only gasoline, no other auxiliary equipment is needed.
  • It is suitable for mining iron ore, copper ore, nickel ore, lead zinc ore, gold ore, gem ore, granite, bluestone, jade, and some other mines.

Request A Quote

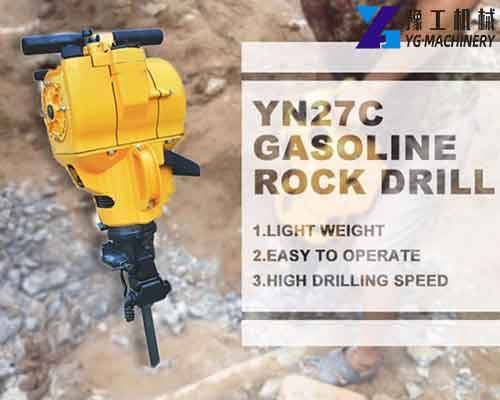

YN-27C Gasoline Rock Drill Machine
YN-27C Gasoline Rock Drill Machine

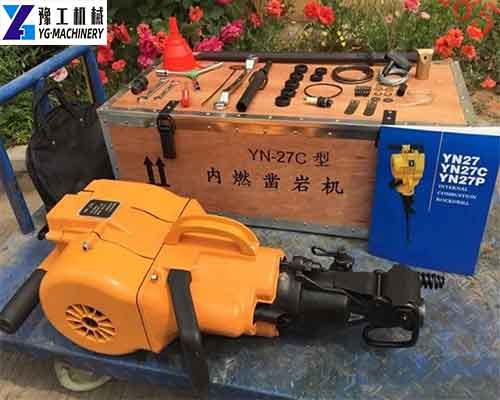

Gasoline Rock Drill Machine Manufacturer
Gasoline Rock Drill Machine Manufacturer

How To Use the Machine Safety?

  1. When the engine is pneumatic, pull the starter rope after the ratchet mechanism is engaged. Pull the starting rope in the right direction and don’t use too much force to prevent the starting rope from pulling out.
  2. When the rock drill is started with the drill pipe installed, the handle clutch is not allowed to go to the swivel position.
  3. Always pay attention to whether the center hole of the fiber rod is blocked to prevent the machine from flaming out.
  4. To protect the slewing mechanism, the machine must not be overworked.
  5. Gasoline rock drill uses gasoline as the fuel and the exhaust gas will pollute the air. Therefore, in general, it is only allowed to work in the open air.

Gasoline Rock Drilling Machine Price – YG Machinery

No matter which way you search for a gasoline rock drill for sale, you will find many manufacturers and traders. Then you need to select the sellers you find, refer to the information on their website, and send the inquiry. Because of the variety of models, you need to tell them more about your requirements and they can recommend the right model. What you want to know most must include the price. You will get different quotations from those sellers and then you can do a comparison. We can’t guarantee that the price of gasoline rock drill for sale in Henan YG Machinery is the lowest. But as a manufacturer with decades of production experience, our products are sold directly by the factory with no third party, the price is competitive. The most important is that we can guarantee the high quality of the machine and after-sales service. In addition to gasoline rock drills, we can also produce a pneumatic rock drilling machine, diamond coring drill, DTH drilling machine, trailer-mounted drilling rigs, rotary rigs, horizontal directional drilling machines, etc… If you have any need, please feel free to send us an inquiry to get a quotation and more details.【WhatsApp/WeChat/Phone/Skype】+86 136 1385 6800
