Traditional manual piling and ordinary impact drilling methods generally suffer from low efficiency, poor verticality, high labor intensity, and difficulties in mountainous terrain. This is especially true for large-scale photovoltaic power station projects, which have numerous pile positions and tight schedules, making it difficult to guarantee progress and quality through manual construction. Solar pile drivers, also known in the industry as photovoltaic piling machines, solar bracket piling machines, or photovoltaic foundation piling equipment, are specialized engineering piling equipment. Their core function is to drive steel pipe piles and helical piles into the foundation of solar photovoltaic power stations, ensuring the stability and verticality of the photovoltaic support foundation.
YG, as a professional manufacturer of engineering piling equipment, specializes in a full range of solar piling machines, covering both tracked and wheeled chassis, and also offers rotary drilling rigs suitable for complex geological formations. Currently, they are exported in bulk to countries with abundant solar resources and strong demand for photovoltaic construction, such as Pakistan, Saudi Arabia, Australia, Brazil, Nigeria, and Mexico, and are widely adaptable to various photovoltaic power station scenarios, including mountainous areas, plains, and deserts.
YG’s full range of piling equipment is divided into three main categories, suitable for different scenarios and geological formations:

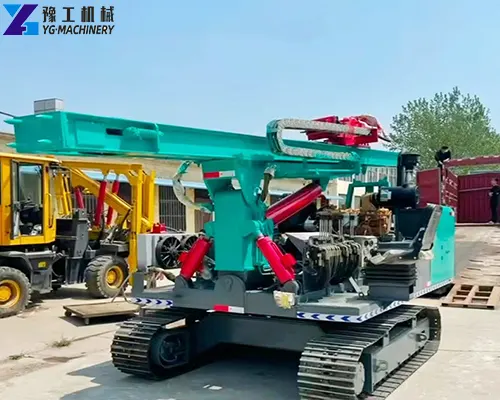

- Tracked Photovoltaic Piling Machines (Main Recommendation): The tracked chassis has low ground pressure, preventing the machine from getting stuck in mountainous or soft soil terrain. It boasts strong climbing ability and is suitable for photovoltaic projects in complex terrain.
- Wheeled Photovoltaic Piling Machines: Faster relocation via highways, lower cost, suitable for centralized photovoltaic power stations in plains and areas with good road conditions.
- Rotary Drilling Rigs: Suitable for drilling and piling in rock and hard soil layers, addressing complex geological scenarios where ordinary piling machines cannot operate.
If you are interested, please contact us now for more product information.
Click to Learn More About Solar Pile Drivers
YG Hot-sale Solar Pile Driver Technical Parameters
| Hydraulic photovoltaic pile driver | |||
| Overall dimensions | 4700*2100*2800mm | Drill pipe rotational speed | 180r/min |
| Track shoe width | 400mm | gradability | 30° |
| motor | 4108 | rock hardness | 6-20F |
| Drilling diameter | 80-500mm | Slide tilt angle | 120° |
| Drilling depth | 0-6m | Drill arm swing angle | left and right150° |
| Reducer torque | 13000n.m | Slide swing angle | left and right40° |
| Mainstream pump | triple pump | Driving speed | 0-3km/h |
| oil pump | 40/40/32 | ||
| Crawler photovoltaic pile driver | |||
| Overall dimensions | 4700*2200*2800mm | Hydraulic hammer flow | 50-110L/min |
| Track shoe width | 400mm | Impact frequency | 350-800BMP |
| motor | 4108 | Hydraulic system pressure | 25mpa |
| Generator power | 88kw Motor | Strong wind for heat dissipation | yes |
| Drilling depth | 0-6m | oil pump | 40/40/32 |
| Drilling diameter | 80-600mm | Driving speed | 3km/h |
Click to Learn More About Solar Pile Drivers
What Are the Core Functional Features of a Solar Pile Driver?
- Multifunctional integrated operation. One machine can complete multiple operations such as auger drilling, hydraulic hammer pile driving, ground screw driving, and pile extraction, eliminating the need to change multiple machines. Drilling tools or hammer heads can be quickly changed to suit different geological conditions, covering all site construction needs with a single machine. The hydraulic impact hammer configured in the hydraulic pile driver machine can achieve an impact frequency of 350-800 bpm and an impact energy of 1000-2000J, operating efficiently in both soft and hard soil layers.
- High-efficiency construction, driving 200 piles per day. A skilled operator can complete the construction of a single pile in just 1-3 minutes under standard soil conditions, completing 150-200 piles per day, which is 15-20 times more efficient than manual pile driving. For megawatt-level photovoltaic power plants, using a solar pile driver can shorten the pile foundation construction cycle by more than 60%.
- Strong terrain adaptability. The tracked chassis is equipped with wide track shoes (300- 400 mm), resulting in low ground pressure and stable operation in complex terrains such as sand, Gobi, mountains, and slopes. The standard model has a climbing ability of up to 30°, while the high-end model can reach 45°, suitable for mountain and hilly photovoltaic projects. The drill frame is multi-angle adjustable (left/right swing angle ±75°, pitch angle 120°), ensuring pile verticality even on slopes.
- Fully hydraulic control for precise operation. Utilizing a fully hydraulic transmission system, the operation is smooth and the control precise. The power head torque is available in multiple levels from 5000Nm to 15000Nm, allowing adjustment of drilling parameters based on pile diameter and soil hardness. Equipped with a depth indicator and verticality monitoring, it ensures that the depth and angle of each pile meet design requirements.
- Reliable and durable with a low failure rate. The main frame is welded from high-strength steel plates, key components of the hydraulic system are from internationally renowned brands, and seals are made of imported materials, ensuring long-term stable operation in harsh environments such as high temperatures and high dust levels. Equipped with a high-power cooling system, it can operate continuously for 24 hours without overheating.
- User-friendly operation design. The fully enclosed cab is equipped with air conditioning and a shock-absorbing seat. The control handles are centrally located, allowing operators to work independently after short-term training. A single-unit model requires only one operator, significantly reducing labor costs and safety risks.
Click to Learn More About Solar Pile Drivers
Where Can Solar Piling Machines Be Used?
- Ground-mounted centralized photovoltaic power stations. Large-scale photovoltaic power stations in flat land, the Gobi Desert, and other desert areas are the core application scenarios for solar piling machines. These locations have a large number of piles and relatively flat terrain, maximizing equipment efficiency.
- Mountain/hilly photovoltaic power stations. Mountainous photovoltaic projects with large terrain undulations and steep slopes require high climbing ability and drilling frame angle adjustment capabilities, necessitating the selection of high-configuration tracked models.
- Floating photovoltaic power stations. For the pile foundation construction of floating photovoltaic projects, small piling equipment can be used on barges, or amphibious modified models can be selected.
- Distributed photovoltaic/residential photovoltaic. For the ground pile foundation construction of industrial and commercial rooftops and residential photovoltaic systems, small portable or wheeled models can be selected.
- Highway guardrail piling. After changing the hammer head and clamps, it can be used for driving and extracting piles for highway corrugated guardrail posts.
- Installation of ground bolts/spiral piles. With specialized clamps, it can be used for screwing in helical ground piles and photovoltaic bracket ground bolts, suitable for various photovoltaic bracket foundations.
- Small building foundation drilling. It can be used for drilling foundation piles for rural houses, small factories, greenhouses, and other buildings.
- Photovoltaic power station operation and maintenance. Pile driving equipment is also needed for operation and maintenance projects such as the renovation of old power stations, bracket replacement, and replacement of defective piles.
Click to Learn More About Solar Pile Drivers
Case Studies of Saudi Arabian and Vietnamese Clients Who Purchased YG Solar Piling Machines to Complete Projects
Case Study 1: NEOM New City 500MW Photovoltaic Power Plant Project, Saudi Arabia
- Client Background: A large Saudi EPC company undertook the construction of the NEOM New City supporting photovoltaic power plant project. Located in a desert region, the project area experiences summer surface temperatures exceeding 50°C. The geology consists primarily of sandy soil and weathered rock, with a total of approximately 120,000 piles.
- Challenges: The project had a tight schedule, requiring all pile foundation construction to be completed within four months. The high desert temperatures placed extremely high demands on equipment heat dissipation and reliability. Traditional equipment was prone to problems such as excessively high hydraulic oil temperatures and reduced power. Manual pile driving was too inefficient and could not meet the schedule requirements.
- Solution: The client purchased 8 units of solar pile drivers in a single transaction, equipped with a high-power desert-specific cooling system and high-temperature-resistant seals. The equipment employed a combined process of auger pre-drilling and hydraulic hammer pile driving, ensuring both efficiency and quality through pre-drilling and subsequent driving.
- Performance Results: Each machine drove an average of 180-220 piles per day, with all eight machines collectively driving over 1500 piles per day. All 120,000 piles were completed in just 80 days, 40 days ahead of schedule. The equipment operated continuously at 50°C without any major malfunctions, achieving a 98% uptime rate.
- Customer Testimonial: “YG’s solar-powered piling machines performed better than expected in the high temperatures of the Saudi desert. The cooling system is extremely reliable; it worked continuously for over ten hours without triggering a high-temperature alarm. The dual-system design is very practical; the auger drill was fast enough for sandy layers, and the hydraulic hammer could be used for weathered rock layers. YG equipment played a crucial role in the early delivery of this project, and we will continue to purchase from them for future projects.” — Ahmed, Project Director, Saudi EPC Company
Case Study 2: 150MW Floating Solar PV Project in the Mekong Delta, Vietnam
- Client Background: A Vietnamese clean energy investment company was developing a floating solar PV project in the Mekong Delta. The project covers approximately 200 hectares of water and required the installation of pilings to secure the floating structure within the underwater silt layer.
- Challenges: The underwater geology consisted of deep silt and soft soil layers, making it easy for ordinary equipment to get stuck. Floating operations required equipment to operate stably on the floating platform, placing high demands on the equipment’s weight and balance. The local rainy season was long, limiting the construction window; all pile foundations had to be completed during the dry season.
- Solution: The client purchased 6 tracked solar piling machines, which were installed on a custom-designed floating platform. The lightweight design (6.8 t) and high-buoyancy floating platforms ensured stability on the water surface. Extended augers were used, allowing for a maximum drilling depth of 8 meters, penetrating the silt layer to reach the bearing stratum.
- Results: The six machines completed the construction of all 36,000 pile foundations within the three-month dry season, averaging over 200 piles per machine per day. The verticality and depth of the piles fully meet design requirements, with a 100% pass rate from third-party inspections. The equipment’s amphibious flexibility impressed the customer.
- Customer Testimonial: “Floating solar piling is a technical job, and we tried several different companies’ equipment without success. YG’s tracked piling machine is very stable on the floating platform, drilling quickly and straight through the silt. Their after-sales service is also excellent; engineers flew to Vietnam to guide installation and provide training. We’ve already decided on YG for our next 200MW project.” — Nguyen, Technical Director, Vietnam Solar Investment Company
Click to Learn More About Solar Pile Drivers
Frequently Asked Questions about Solar-Powered Pile Drivers
A1: This depends on the soil conditions and pile type. In standard soil layers, a skilled operator can drive 150-200 steel pipe piles or ground bolts with a pile length of 3- 4 m per day; in hard soil or gravel layers, a hydraulic hammer can drive approximately 80-150 piles; for bored piles (including grouting), approximately 40-80 piles. The actual efficiency of a solar piling machine depends on the specific site conditions.
A2: For projects with flat terrain, good road conditions, and frequent relocation, wheeled machines are preferred due to their fast travel speed (10-15km/h) and convenient transportation. For projects with complex terrain, slopes, sand, or mud, tracked machines are preferred because of their lower ground pressure, reduced risk of getting stuck, and stronger climbing ability. Most photovoltaic power stations still primarily use tracked machines.
A3: Spiral drilling and hydraulic hammer piling do not require an air compressor. An air compressor is only needed if the geology contains rock layers and a down-the-hole (DTH) hammer is required. Air compressor specifications are selected based on the drill rod diameter, generally 10-20 cubic meters displacement and 10-20 bar pressure.
A4: Hydraulic pile drivers can drive piles of various cross-sections, including steel pipe piles, H-beam piles, precast concrete piles, and wooden piles. Changing the pile cap adapts to different pile types. It can also be equipped with a ground bolt clamp to screw in spiral piles and a pile extractor to pull out old piles, offering great flexibility.
A5: YG provides full-process overseas service support: operation videos and training manuals are provided before shipment; after shipment, engineers can provide remote video guidance for installation and commissioning; for on-site service, engineers can be arranged to travel abroad (at an additional cost). Commonly used wear parts are stocked and delivered globally in 7-15 days. The entire machine has a 1-year warranty and lifetime technical support.
